MONARCH 10EE (1948)
 home

General

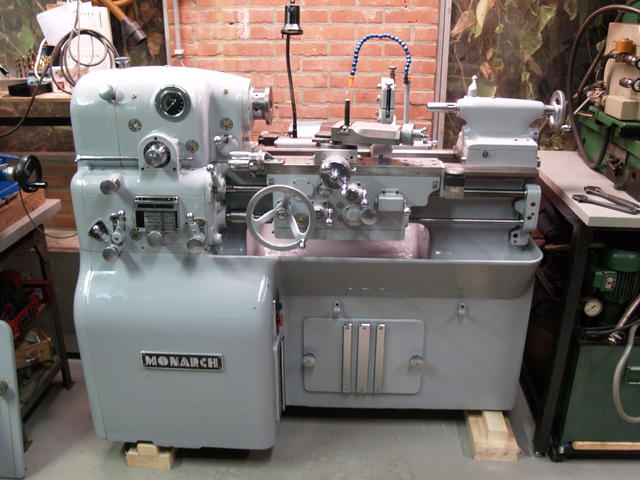

This is my Danish Monarch 10ee toolmaker lathe.It was manufactured as an export model in 1948 and has Danish nameplates. The entire machine is metric, including all of the lead screws, threading gearboxes, and dials. The original owner was Leo Madsen from Copenhagen. At some point, it was exported to Norway. The machine was eventually purchased for hobby use. When this person bought the lathe, he completely repainted and rebuilt it. In 2007, this lathe was sold and shipped to the Netherlands.. The following shows the last journey of this lathe

monarch 10ee 1948


Specifications
brand Monarch
model EE
year 1948
serial EE-32217
size 10" x 20"
weight +/- 1500 kg
spindlenose external Camlock D 1-3 adapter. (Din 5029)
spindlenose internal Jarno taper #5
spindle bore 35,7 mm 1 13/32 "
tailstock MC 2
tailstock diameter   1 3/4"
tailstock traverse   3 1/2"
swing over bed 320 mm 12,5 "
swing over carr. 182 mm 7 1/4 "
between center 500 mm 20 "
bed width 265 mm 10 1/2 "
special Full metric, Dutch plates
floor space   29" x 61"
color RAL 6011 vista green



speed high range 40 - 2500 rpm
speed low range 8 - 250 rpm
feeds 0.011 - 0.4 mm / rev
threads 47
thread range 0,162 - 6
motor 3kw



Accessoires
taper attachment
steady rest 10ee steady rest
moving rest 10ee moving rest 10ee steady rest
colletnose 5C 10ee colletnose 5C
dogdriver 10ee dogdriver

face plate


3 jaw chuck Swedish sca chuck 3jaw
6 jaw chuck Bison settru 160 mm bison 6jaw settru
colletcloser 5C Bison settru bison 5C colletcloser settru
